ADS-B Installation Gallery

Denny Kotz

Wednesday, June 28, 2017 at 02:18 PM ET

Verified

Key Takeaways:

The author upgraded their airplane's failing and obsolete Narco 50A transponder and encoder to a new Stratus ESG system, installing a rack that fit the old location and a new encoder with improved 25 ft accuracy.
A new GPS antenna was carefully installed on the fuselage, requiring drilling a new hole, strengthening the installation with a doubler, and sealing it to ensure leak-free operation.
New antenna cables were routed from the GPS antenna and a whip antenna to the Stratus ESG transponder and integrated Stratus 2S, allowing the 2S to receive satellite information without needing direct sky visibility.

See a mistake? Contact us.

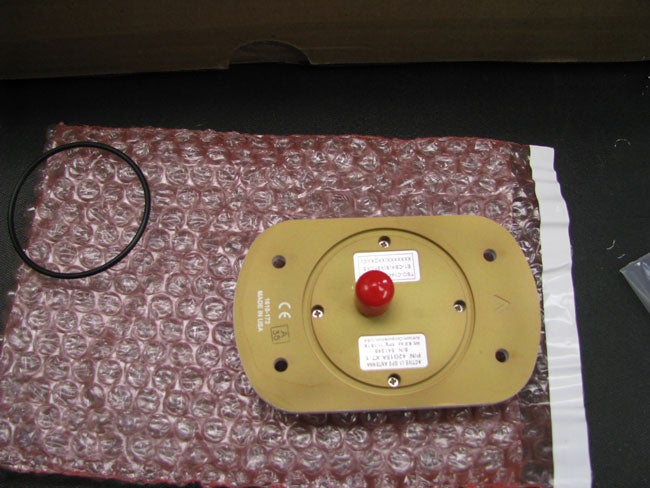

My new GPS antenna before it was installed. An O-ring is provided to seal the antenna to the fuselage. In addition, a sealant was applied to the perimeter of the antenna in order to ensure leak-free operation no matter what the environmental conditions.
