Key Takeaways:

  • An obsolete Narco 50A transponder and encoder were removed and replaced with a modern Stratus ESG transponder, a new rack, and an encoder offering improved 25-foot accuracy.
  • A new external GPS antenna was aligned, drilled, reinforced with an internal doubler, and sealed onto the aircraft fuselage to avoid signal shadowing.
  • New cables were routed through the cabin to connect the belly whip and GPS antennas, allowing a panel-mounted Stratus 2S receiver to pull satellite data directly from the new GPS antenna.
See a mistake? Contact us.
Stratus ESG transponder and Stratus 2S

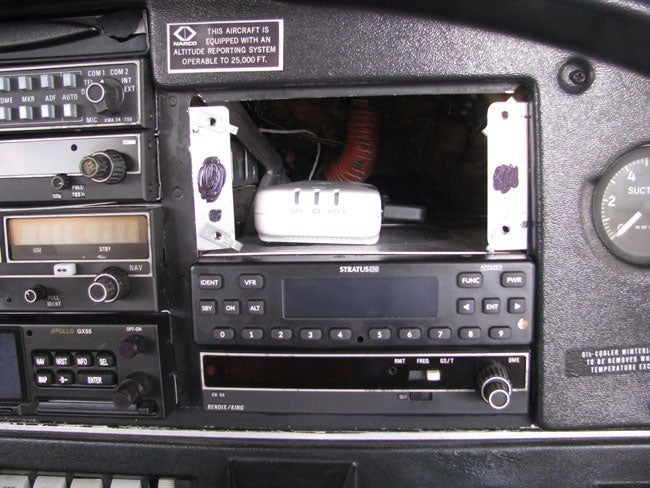

My new Stratus ESG Transponder and my Stratus 2S. The 2S is connected by an antenna and power cable inside an open bay in my panel. The Stratus 2S obtains satellite information from the newly installed GPS antenna, so it no longer has to have a visible view of the sky. However, it must retain the proper fore and aft orientation in order to provide the necessary attitude information.
