Key Takeaways:

  • An obsolete Narco 50A transponder and encoder were removed and replaced with a modern Stratus ESG transponder, a new rack, and an encoder offering improved 25-foot accuracy.
  • A new external GPS antenna was aligned, drilled, reinforced with an internal doubler, and sealed onto the aircraft fuselage to avoid signal shadowing.
  • New cables were routed through the cabin to connect the belly whip and GPS antennas, allowing a panel-mounted Stratus 2S receiver to pull satellite data directly from the new GPS antenna.
See a mistake? Contact us.
Narco 50A rack, transponder, and encoder
Transponder rack installation

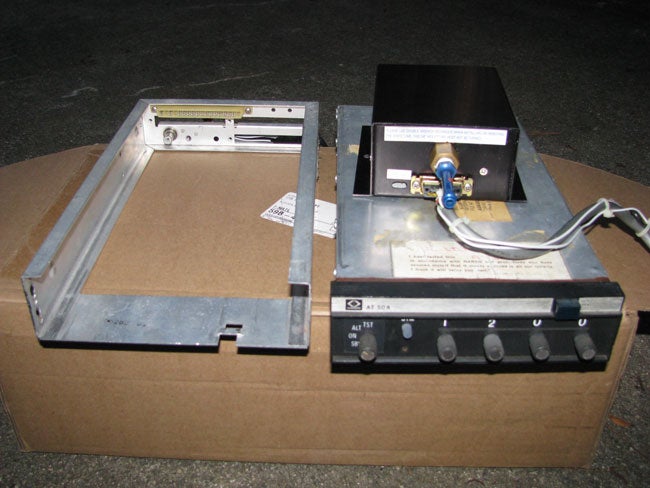

The Narco 50A rack, transponder and encoder. Out with the old to make way for the new. The weight of the old equipment was recorded in order to update the weight and balance for my airplane.

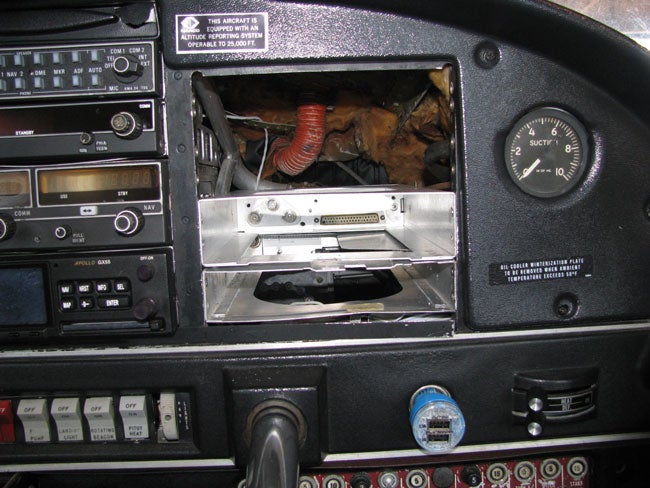

The installation begins with the installation of the new rack in the panel. The rack easily fit in the old location between the frame rails. Some new mounting holes were necessary for installation.
Encoder

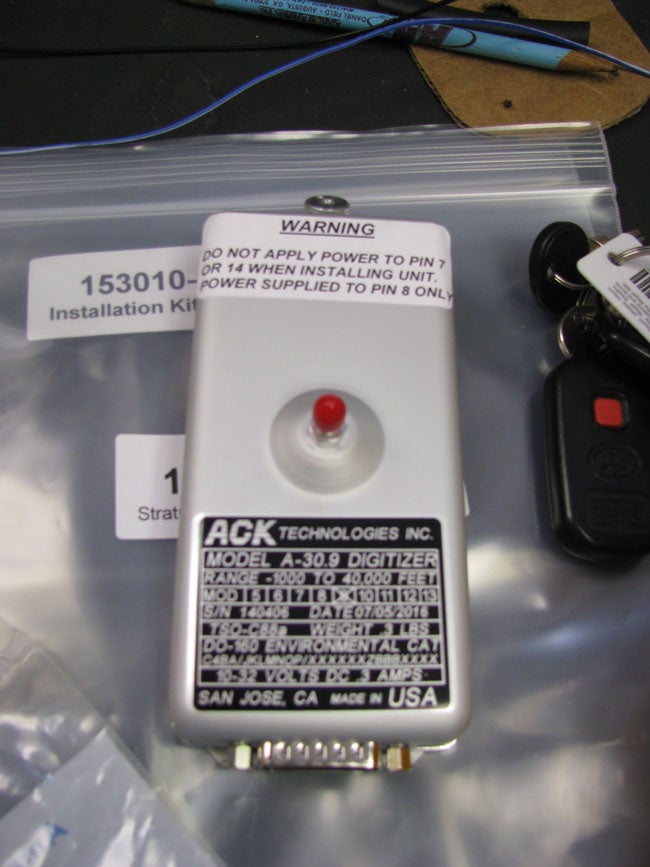

My new encoder. Only 3 wires required, and improved accuracy. The older encoder could have worked, but it provides 200 ft. accuracy, while the new encoder provides 25 ft. accuracy.
