Key Takeaways:

  • An obsolete Narco 50A transponder and encoder were removed and replaced with a modern Stratus ESG transponder, a new rack, and an encoder offering improved 25-foot accuracy.
  • A new external GPS antenna was aligned, drilled, reinforced with an internal doubler, and sealed onto the aircraft fuselage to avoid signal shadowing.
  • New cables were routed through the cabin to connect the belly whip and GPS antennas, allowing a panel-mounted Stratus 2S receiver to pull satellite data directly from the new GPS antenna.
See a mistake? Contact us.

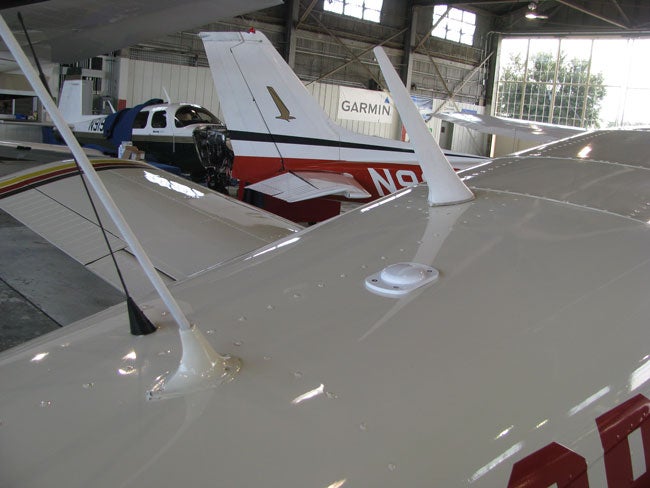

GPS antenna from the top

My new GPS antenna location. It must not be shadowed by other antennas, which required measuring from the proposed location to the other antennas in that location. Getting it straight was done using our eyes from several different locations. There were no definite body lines to follow. Several minutes were devoted to checking the orientation of the antenna from every angle. Once we were satisfied, the four mounting holes were drilled. Once again, I sat inside the airplane with a cup to catch the metal while Jacob drilled the holes.
