ADS-B Installation Gallery

Panel cover
Gemini Sparkle

Key Takeaways:

  • An obsolete Narco 50A transponder and encoder were removed and replaced with a modern Stratus ESG transponder, a new rack, and an encoder offering improved 25-foot accuracy.
  • A new external GPS antenna was aligned, drilled, reinforced with an internal doubler, and sealed onto the aircraft fuselage to avoid signal shadowing.
  • New cables were routed through the cabin to connect the belly whip and GPS antennas, allowing a panel-mounted Stratus 2S receiver to pull satellite data directly from the new GPS antenna.
See a mistake? Contact us.

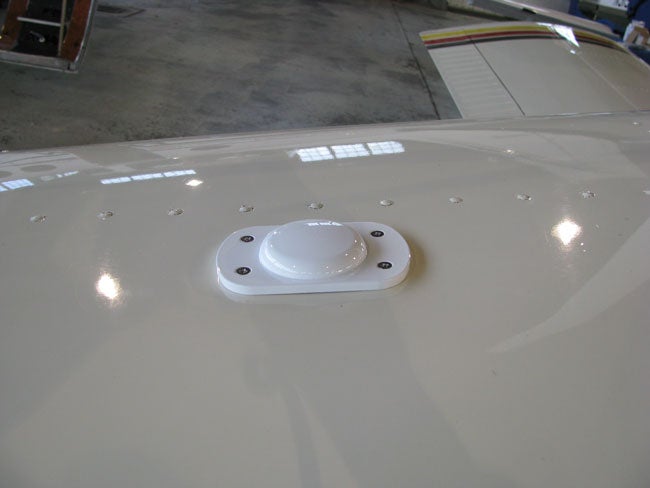

GPS antenna close-up

Close-up of my new GPS antenna.
