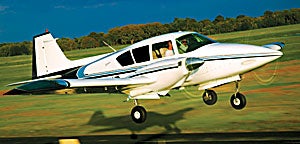

Piper Geronimo N4411P
|
||
| Engine make/model: | Lycoming 0-360-A1D | |
| Horsepower@rpm@altitude: | 180@2700@SL | |
| Horsepower for takeoff: | 180 | |
| TBO hrs.: | 2000 | |
| Fuel type: | 100/100LL | |
| Propeller type: | Hartzell, 2-blade, CS | |
| Landing gear type: | Tri./retr. | |
| Max ramp weight (lbs.): | 3800 | |
| Empty weight, as tested (lbs): | 2423 | |
| Useful load, as equipped (lbs.): | 1377 | |
| Payload, full normal fuel (lbs.): | 729 | |
| Usable fuel, normal (gals.): | 108 | |
| Optional fuel (gals.): | 156 | |
| Oil capacity (qts.): | 8 | |
| Wingspan: | 37 ft. | |
| Overall length: | 31 ft. 6 in. | |
| Height: | 31 ft. 6 in | |
| Wing area (sq. ft.): | 207.6 | |
| Wing loading (lbs./sq. ft.): | 18.3 | |
| Power loading (lbs./hp.): | 10.6 | |
| Wheel base: | 7 ft. 3 in. | |
| Wheel track: | 11 ft. 3 in. | |
| Wheel size (in.): | 6.00 x 6 | |
| Seating capacity: | 4-6 | |
| Cabin doors: | 1 | |
| Cabin width (in.): | 48 | |
| Cabin height (in.): | 50 | |
| Baggage capacity (lbs./cu. ft.): | 200 | |
|
PERFORMANCE
|
||
| Cruise speed (kts.): | ||
| 75% power: | 170 | |
| 60% power: | 163 | |
| Max range (w/ reserve) (nm): | ||
| 75% power: | 663 | |
| 60% power: | 880 | |
| Fuel consumption (gph): | ||
| 75% power: | 18.5 | |
| 60% power: | 17 | |
| Estimated endurance (60%) (hrs): | 5.5 | |
| Vs (kts.): | 52 | |
| Vso (kts.): | 47 | |
| Best rate of climb (SL fpm): | 1500 | |
| Best rate of climb,8,000 ft. (fpm): | 1000* | |
| Single-engine rate of climb, SL (fpm): | 600+* | |
| Service ceiling (ft): | 23,000 | |
| Single-engine service ceiling (ft.): | 12,000 | |
| Takeoff ground roll (ft.): | 400 | |
| Landing ground roll (ft.): | 400 | |
| Landing over 50-ft. obstacle (ft.): | 1400 | |
| *estimated | ||
| Sources: Aircraft Bluebook Price Digest, Jane’s All The World’s Aircraft and Pilot’s Operating Handbook | ||
