| STANDARD DATA: Gross wt. 750. Empty wt. 450. Fuel capacity 7.5. Wingspan 25′. Length 20’9″. PERFORMANCE: Top mph 85. Cruise mph 75. Stall mph 28. Climb rate 450. Takeoff run 250. Landing roll 120. Range 180. |

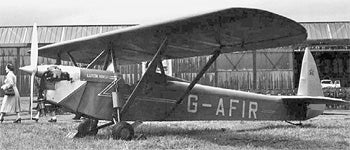

This single-seat strut-braced parasol monoplane carries Volkswagen air-cooled engines rated from 30 to 65 hp. First flown in 1936, the design was upgraded in 1960 to handle 55-hp engines and up. The Luton Minor’s wings are built around a wooden two-spar structure in two halves and supported by a tubular centersection pylon structure. The wings are removable for transporting and storage. The fuselage is an all-wood plywood-covered structure. Plans are now being sold by Popular Flying Association.
