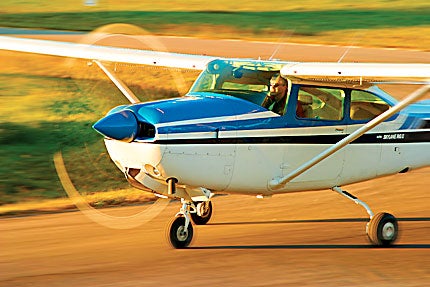

Cessna Turbo Skylane RG II N756GZ
|
||
| Base/used Price: | $35,000 | |
| Engine make/model: | Lycoming 0-540L3C5D | |
| Horsepower@rpm: | 235@2400 | |
| Horsepower for takeoff: | 235 | |
| TBO hrs.: | 2000 | |
| Fuel type: | 100LL | |
| Propeller type/diameter: | Constant speed/82 | |
| Landing gear type: | Tri./Retr. | |
| Max ramp weight (lbs.): | 3112 | |
| Gross weight (lbs.): | 3100 | |
| Landing weight (lbs.): | 3100 | |
| Empty weight, std. (lbs.): | 1815 | |
| Empty weight, as tested (lbs): | 1934 | |
| Useful load, std. (lbs.): | 1297 | |
| Useful load, as tested (lbs): | 1166 | |
| Payload, full std. fuel, as tested (lbs.): | 650 | |
| Usable fuel, std. (gals.): | 88 | |
| Oil capacity (qts.): | 9 | |
| Wingspan: | 36 ft. | |
| Overall length: | 28 ft. 7.5 in. | |
| Height: | 8 ft. 11 in. | |
| Wing area (sq. ft.): | 174 | |
| Wing loading (lbs./sq. ft.): | 17.8 | |
| Power loading (lbs./hp.): | 13.2 | |
| Wheel base: | 5 ft. 4 in. | |
| Wheel track (ft.): | 9 | |
| Wheel size, nose (in.): | 5 | |
| Wheel size, mains (in.): | 6 | |
| Seating capacity: | 4 | |
| Cabin doors: | 2 | |
| Cabin width (in.): | 42 | |
| Cabin height (in.): | 48.5 | |
| Baggage capacity, two areas (lbs.): | 120/80 | |
|
PERFORMANCE
|
||
| Cruise speed (kts.): | ||
| 75% power: | 128 | |
| 65% power: | 121* | |
| 55% power: | 110* | |
| Max range (w/ reserve) (nm): | ||
| 75% power: | 444 | |
| 65% power: | 487 | |
| 55% power: | 522 | |
| Fuel consumption (gph): | ||
| 75% power: | 10.0* | |
| 65% power: | 9.0* | |
| 55% power: | 8.0* | |
| Vs (kts.): | 45 | |
| Best rate of climb, SL (fpm): | 667 | |
| Best rate of climb, 8,000 ft. (fpm): | 400* | |
| Service ceiling (ft.): | 15,100 | |
| Takeoff distance (ft.): | 1135 | |
| Takeoff over 50-ft. obstacle (ft.): | 1608 | |
| Landing distance (ft.): | 920 | |
| Landing over 50-ft. obstacle (ft.): | 1400 | |
| * estimated | ||
| Sources: Jane’s All The World’s Aircraft and New Piper Aircraft | ||
