2018 Vulcanair V1.0

Specifications

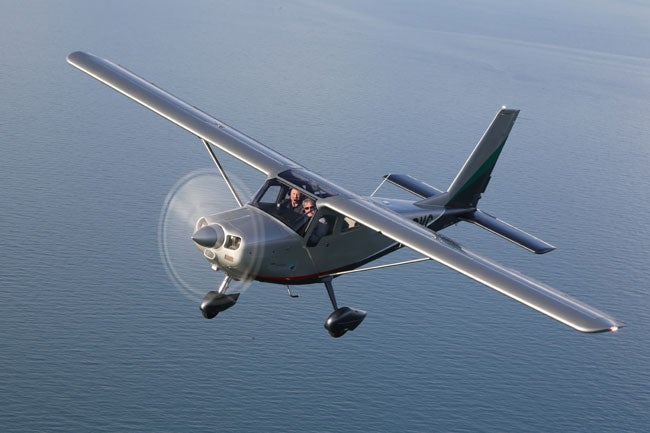

Vulcanair V1.0
Gemini Sparkle

Key Takeaways:

  • The aircraft is constructed from metal, powered by a 180 hp Lycoming IO-360-M1A engine with a Hartzell 2-blade constant speed propeller, and features Garmin G500 avionics.
  • It boasts a top cruise speed of 130 kts, a maximum range of 591 nm, and a stall speed (landing configuration) of 51 kts.
  • With a maximum takeoff weight of 2,546 lbs, it offers a useful load of 919 lbs (619 lbs with full fuel).
  • Takeoff and landing distances over a 50 ft obstacle are 1,608 ft and 1,575 ft, respectively.
See a mistake? Contact us.

Main Construction: Metal

Engine/HP: Lycoming IO-360-M1A/180 hp

Propeller: Hartzell, 2-blade, metal, constant speed, 74″ diameter

Avionics: Garmin G500

Top Cruise Speed: 130 kts

Stall, Landing Configuration: 51 kts

Max Range: 591 nm

Max Takeoff Weight: 2,546 lbs.

Payload (full fuel): 619 lbs.

Useful Load: 919 lbs.

Takeoff/Landing Distance: 1,608 ft./1,575 ft. (50 ft. Obstacle)
