2017 Rans S20LS Raven

Specifications

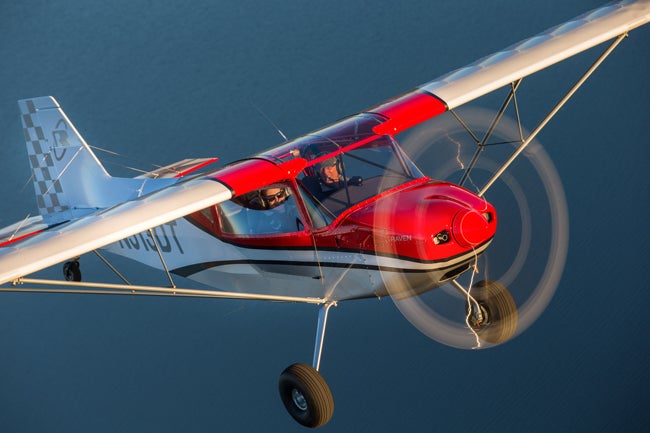

Rans S20LS Raven
Gemini Sparkle

Key Takeaways:

  • This is a factory-built, two-seat aircraft available for $119,000, constructed with a tubular frame and fabric/metal.
  • Powered by a 100 hp Rotax 912 ULS engine, it achieves a top cruise speed of 97 kts and a maximum range of 506 nm.
  • It boasts impressive short-field performance with takeoff/landing distances of 300/340 ft, a very low stall speed of 28 kts, and offers a 424 lbs payload with full fuel.
See a mistake? Contact us.

Base Price: $119,000 (factory-built fly-away)

Seats: 2

Main Construction: Tubular frame with fabric/metal

Engine/Hp: Rotax 912 ULS/100 hp

Propeller: Warp Drive, 2-blade, ground adjustable, 70″ diameter

Avionics: Non-integrated VFR analog, Garmin aera 660GPS

Top Cruise Speed: 97 kts

Stall, Landing Configuration: 28 kts

MaximumRange: 506 nm

Maximum Takeoff Weight: 1,320 lbs.

Payload: 424 lbs. (full fuel)

UsefulLoad: 580 lbs.

Takeoff/Landing Distance (No Obstacle): 300/340 ft.
