2017 Diamond DA40

Specifications

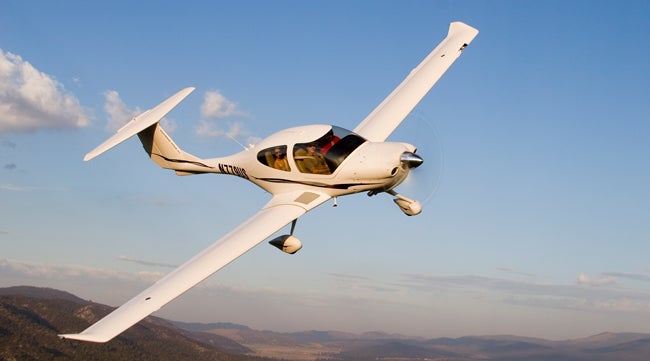

Diamond DA40
Gemini Sparkle

Key Takeaways:

  • This 4-seat aircraft, constructed from composite materials, is powered by a 180 hp Lycoming IO-360-M1A engine and features Garmin G1000 avionics.
  • It offers a top cruise speed of 137 knots and an impressive maximum range of 830 nautical miles.
  • With a base price of $389,900, it provides a useful load of 900 lbs, accommodating a 660 lb payload with full fuel.
  • The aircraft exhibits efficient operational characteristics, including takeoff and landing distances of 1,000 feet (no obstacle) at its maximum takeoff weight of 2,646 lbs.
See a mistake? Contact us.

Base Price: $389,900

Seats: 4

Main Construction: Composite

Engine/Hp: Lycoming IO-360-M1A/180 hp

Propeller: MT (MTV-12), 3-blade, constant speed, 80″ diameter

Avionics:Garmin G1000

Top Cruise Speed: 137 kts

Stall, Landing Configuration: 60 kts

Maximum Range: 830 nm

Maximum Takeoff Weight: 2,646 lbs.

Payload: 660 lbs. (full fuel)

Useful Load: 900 lbs.

Takeoff/Landing Distance (MTOW – No Obstacle): 1,000/1,000 ft.

Takeoff/Landing Distance (MTOW – 50-ft. Obstacle): 1,450/2,100 ft.

Takeoff/Landing Distance (2,161 lbs. – No Obstacle): 550/750 ft.

Takeoff/Landing Distance (2,161 lbs. – 50-ft. Obstacle): 1,000/1,700 ft.


Check out the DA40 and other fantastic single-engine airplanes in our latest Piston Singles Buyer’s Guide.
