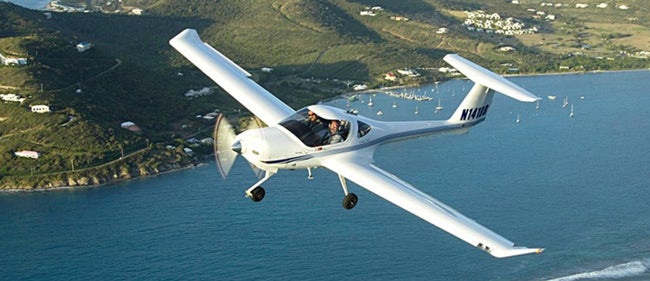

2017 Diamond DA20

Specifications

Diamond DA20
Gemini Sparkle

Key Takeaways:

  • The article details specifications for a 2-seat, composite aircraft, likely the DA20, featuring a base price of $234,800.
  • It is powered by a 125 hp Continental IO-240-B32B engine and equipped with Garmin G500 avionics.
  • Key performance figures include a top cruise speed of 130 kts, a maximum range of 544 nm, and a payload of 440 lbs with full fuel.
See a mistake? Contact us.

Base Price: $234,800

Seats: 2

Main Construction: Composite

Engine/Hp: Continental IO-240-B32B/125 hp

Propeller: Sensenich, 2-blade, fixed pitch, 69″ diameter

Avionics:Garmin G500

Top Cruise Speed: 130 kts (75% power)

Stall, Landing Configuration: 45 kts

Maximum Range: 544 nm

Maximum Takeoff Weight: 1,764 lbs.

Payload: 440 lbs. (full fuel)

Useful Load: 584 lbs.

Takeoff/Landing Distance (50-ft. Obstacle): 1,640/1,360 ft.


Check out the DA20 and other fantastic single-engine airplanes in our latest Piston Singles Buyer’s Guide.
