2017 CubCrafters XCub

Specifications

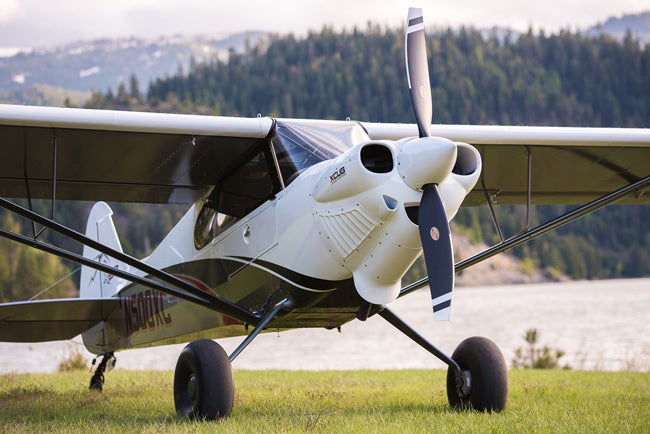

CubCrafters XCub
Gemini Sparkle

Key Takeaways:

  • This two-seat aircraft is priced at $305,800 and is powered by a 180 hp Lycoming O-360-C1G engine.
  • It features a steel tubular frame with fabric and carbon composite parts, a Hartzell composite propeller, and Garmin 530GPS avionics.
  • Key performance specifications include a top cruise speed of 126 kts, a maximum range of 800 nm, and an impressive 170 ft takeoff/landing distance.
  • The aircraft has a maximum takeoff weight of 2,300 lbs and a useful load of 1,084 lbs.
See a mistake? Contact us.

Base Price: $305,800

Seats: 2

Main Construction:Steel tubular frame with fabric, carbon composite parts

Engine/Hp:Lycoming O-360-C1G/180 hp

Propeller:Hartzell Trailblazer, 2-blade, constant speed, composite, 78″ diameter

Avionics: Non-integrated, Garmin 530GPS

TopCruise Speed: 126 kts (75% power)

Stall, Landing Configuration: 40 kts

Maximum Range: 800 nm

Maximum Takeoff Weight: 2,300 lbs.

Payload: 790 lbs. (full fuel)

Useful Load: 1,084 lbs.

Takeoff/Landing Distance (No Obstacle): 170/170 ft.


Check out the XCub and other fantastic single-engine airplanes in our latest Piston Singles Buyer’s Guide.
