2017 Bristell NG 5 LSA

Specifications

KOConnor

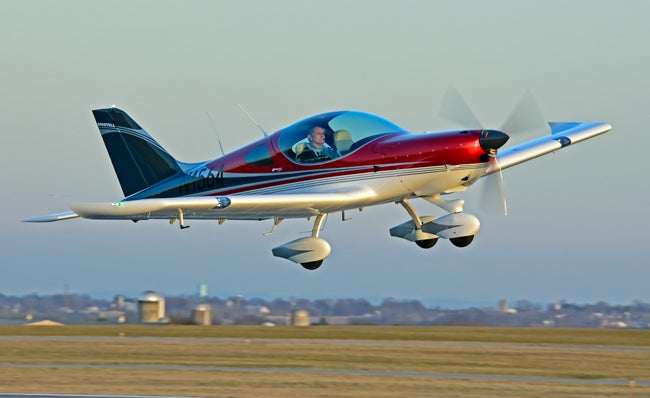

Bristell NG 5 LSA
Gemini Sparkle

Key Takeaways:

  • This 2-seat, metal-constructed aircraft has a base price of $130,000.
  • It is powered by a 100 hp Rotax 912 ULS engine and features Garmin G3X Touch avionics.
  • Key performance specifications include a top cruise speed of 120 kts, a maximum range of 700 nm, and a low stall speed of 31 kts.
  • The aircraft offers a useful load of 617 lbs (403 lbs payload with full fuel) and impressive short-field capabilities, with takeoff/landing distances as low as 688/492 ft.
See a mistake? Contact us.

Base Price: $130,000

Seats: 2

Main Construction: Metal

Engine/ Hp:Rotax 912 ULS/100 hp

Propeller:FITIEco, 3-blade, in-flight adjustable, 62″ diameter

Avionics: Garmin G3X Touch

Top Cruise Speed: 120 kts

Stall, Landing Configuration: 31 kts

Maximum Range: 700 nm

Maximum Takeoff Weight: 1,323 lbs.

Payload: 403 lbs. (full fuel)

Useful Load: 617 lbs.

Takeoff/Landing Distance (No Obstacle): 688/492 ft.

Takeoff/Landing Distance (50-ft. Obstacle): 1,082/721 ft.
