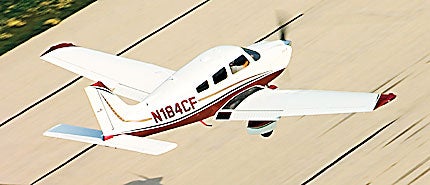

2004 New Piper Archer III N184CF
|
||
| Base price: | $211,400 | |
| Engine make/model: | Lycoming 0-360-A4M | |
| Horsepower@altitude: | 180@SL | |
| TBO hrs.: | 2000 | |
| Fuel type: | 100/100LL | |
| Propeller type: | Sensenich FP | |
| Landing gear type: | Tri./Fixed | |
| Max ramp weight (lbs.): | 2550 | |
| Gross weight (lbs.): | 2550 | |
| Landing weight (lbs.): | 2550 | |
| Empty weight, std. (lbs.): | 1682 | |
| Useful load (lbs.): | 876 | |
| Payload (lbs.): | 588 | |
| Usable fuel (gals.): | 48 | |
| Oil capacity (qts.): | 8 | |
| Wingspan: | 35 ft. 6 in. | |
| Overall length: | 24 ft. | |
| Height: | 7 ft. 4 in. | |
| Wing area (sq. ft.): | 172 | |
| Wing loading (lbs./sq. ft.): | 14.8 | |
| Power loading (lbs./hp.): | 14.2 | |
| Wheel size (in.): | 6.00 x 6 | |
| Seating capacity: | 4 | |
| Cabin doors: | 1 | |
| Cabin width (in.): | 42 | |
| Cabin height (in.): | 45 | |
|
PERFORMANCE
|
||
| Cruise speed (kts.): | ||
| 75% power @ 24,000 ft.: | 128 | |
| 65% power @ 6,500 ft.: | 121* | |
| 55% power @ 16,000 ft.: | 110* | |
| Max range (w/ reserve) (nm): | ||
| 75% power: | 444 | |
| 65% power: | 487 | |
| 55% power: | 522 | |
| Fuel consumption (gph): | ||
| 75% power: | 10.0* | |
| 65% power: | 9.0* | |
| 55% power: |
8.0*
|
|
| Vs (kts.): | 45 | |
| Best rate of climb (SL fpm): | 667 | |
| Best rate of climb, 8,000 ft. (fpm): | 400* | |
| Service ceiling (ft.): | 15,100 | |
| Takeoff distance (ft.): | 1135 | |
| Takeoff over 50-ft. obstacle (ft.): | 1608 | |
| Landing distance (ft.): | 920 | |
| Landing over 50-ft. obstacle (ft.): | 1400 | |
| *estimated | ||
| Sources: Jane’s All The World’s Aircraft and New Piper Aircraft | ||
