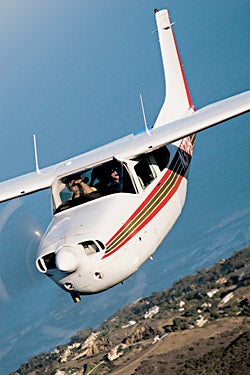

1973 Cessna Centurion T210L
|
||
| Base price: | $544,295 | |
| Engine make/model: | Continental TSIO-520H | |
| TBO (hrs.): | 1400 | |
| Horsepower@altitude: | 285 to 17,000 ft. | |
| Horsepower on takeoff: | 285 | |
| Fuel type: | 100/100LL | |
| Propeller type: | McCauley CS/3-blade | |
| Landing gear type: | Tri./Retr. | |
| Max ramp weight (lbs): | 3800 | |
| Gross weight (lbs.): | 3800 | |
| Landing weight (lbs.) | 3800 | |
| Empty weight, std. (lbs.): | 2195 | |
| Useful load, std. (lbs.): | 1605 | |
| Useful fuel, std (gals.): | 89 | |
| Payload, full std. fuel (lbs.): | 1071 | |
| Wingspan: | 36 ft. 9 in. | |
| Overall length: | 28 ft. 3 in. | |
| Height: | 9 ft. 7 in. | |
| Wing area (sq. ft.): | 175.1 | |
| Wing loading (lbs./sq.ft.): | 21.7 | |
| Wheel size (in.): | 6.00 x 6 | |
| Power loading (lbs./hp): | 12.3 | |
| Seating capacity: | 6 | |
| Cabin doors: | 2 | |
| Cabin width (in.): | 45.5 | |
| Cabin height (in.): | 48 | |
|
PERFORMANCE
|
||
| CRUISE SPEED (kts.): | ||
| 80% power: | 198@20,000 ft. | |
| 70% power: | 190@20,000 ft. | |
| FUEL CONSUMPTION (gph.): | ||
| 80% power: | 17.2 | |
| 70% power: | 15.5 | |
| RANGE (plus reserve, nm): | ||
| 80% power: | 830 | |
| 70% power: | 880 | |
| Vso (kts.): | 57 | |
| Best rate of climb, SL (fpm): | 1115 | |
| Service ceiling (ft.): | 28,500 | |
| Takeoff distance (ft.): | 1170 | |
| Takeoff over 50 ft. obstacle (ft.): | 2030 | |
| Landing distance (ft.): | 765 | |
| Landing over 50 ft. obstacle (ft.): | 1500 | |
| Source: Jane’s All The World’s Aircraft and Intertec’s Aircraft Bluebook Price Digest | ||
