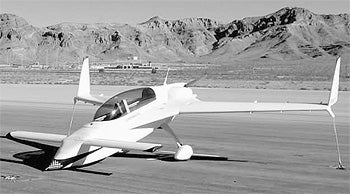

RUTAN “VARIEZE””
STANDARD DATA: Gross wt. 1,050. Empty wt. 570. Fuel capacity 26. Wingspan 22’2″. Length 15′. Engine 100-hp Continental. PERFORMANCE: Top mph 195. Cruise mph 190. Stall mph 65. Climb rate…
 |
| STANDARD DATA: Gross wt. 1,050. Empty wt. 570. Fuel capacity 26. Wingspan 22'2". Length 15'. Engine 100-hp Continental. PERFORMANCE: Top mph 195. Cruise mph 190. Stall mph 65. Climb rate 1,600. Takeoff run 900. Landing roll 900. Range 700. |
This sleek, fast, and lightweight homebuilt is capable of achieving a top speed of 175 mph with a 1,600cc VW conversion or 210 mph with Continental's 100-hp engine. The unusual aircraft combines the use of a NASA GA (W)-l airfoil with Whitcomb winglets and was actually the first aircraft to fly with the latter. The wing is a non-laminar flow airfoil optimized for good lift and stall qualities. The ship's low induced drag lets the pilot negotiate steep, 90-degree banks with strong spiral stability.
